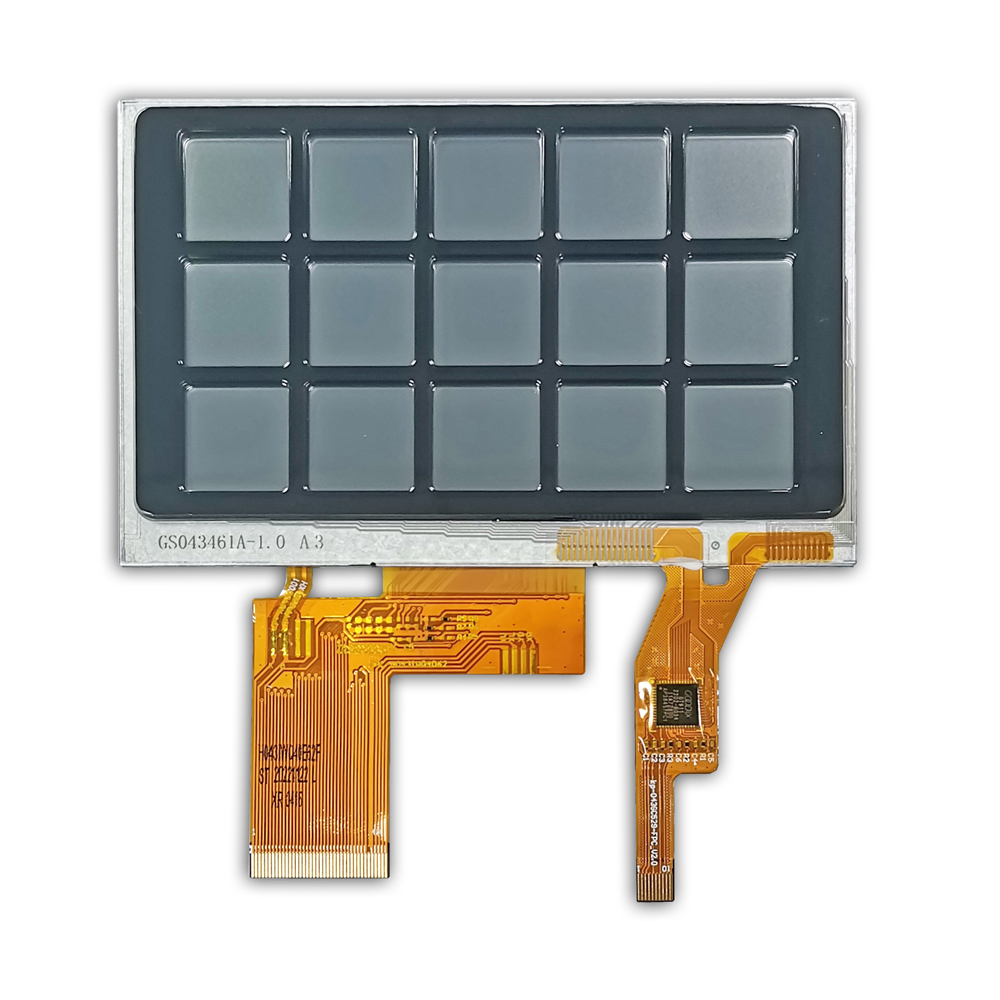

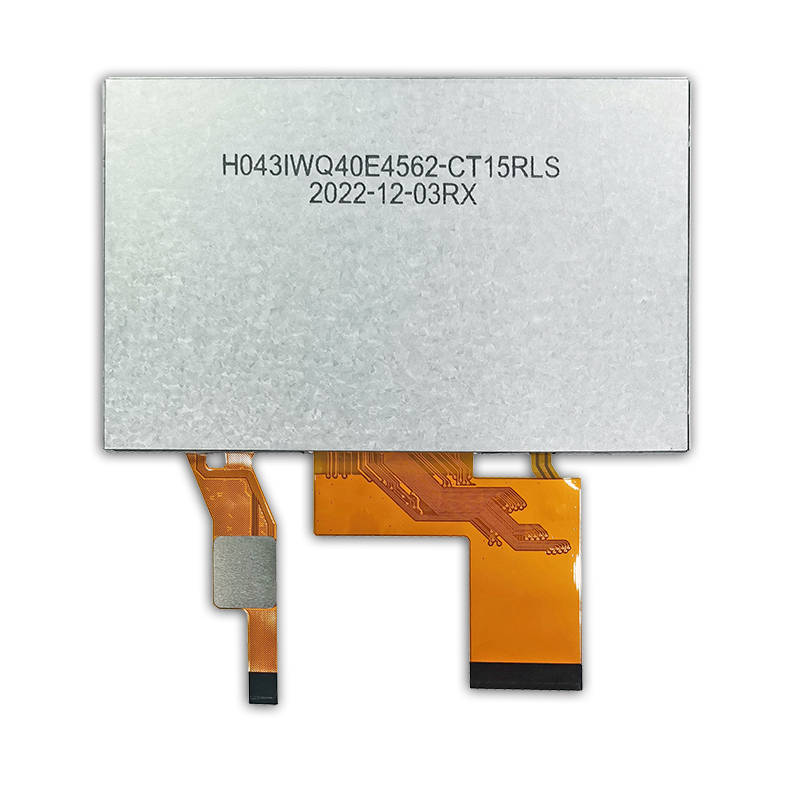

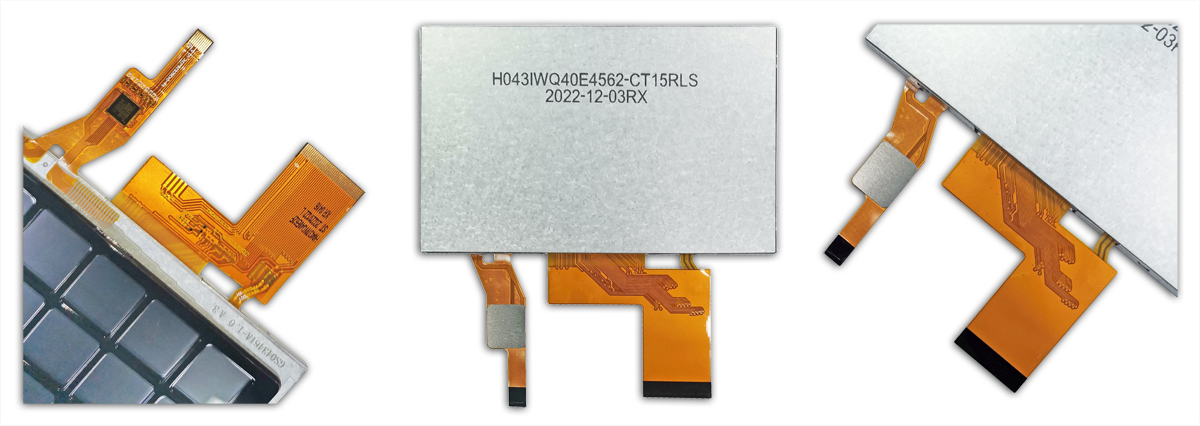

4.3寸液晶屏 帶電容觸摸 RGB+IIC接口 480*272分辨率 TFT LCD模組
型號：H043IWQ40E4562-CT15RLS
尺寸：4.3 inch
分辨率： 480(RGB) × 272
接口方式：40pin 24-bit RGB+IIC
外觀尺寸（顯示區域）：105.4*67.15*5.27（95.04*53.86）
亮度：450 nits
服務熱線：139-2345-7816（雷總）
按需求定制
質量保障
品牌認證
型號：H043IWQ40E4562-CT15RLS
尺寸：4.3 inch
分辨率： 480(RGB) × 272
接口方式：40pin 24-bit RGB+IIC
外觀尺寸（顯示區域）：105.4*67.15*5.27（95.04*53.86）
亮度：450 nits
按需求定制
質量保障
品牌認證
產品參數
產品圖紙
尺寸、接口等規格均可定制，可配電容觸摸、電阻觸摸。如有其它規格需求請聯系我們，我們將竭誠為您服務。
一、產品參數
LCD Size | 4.3 inch |
Display Format | 480 (RGB) × 272 |
Interface | 24-bit RGB |
Color Depth | 16.7M |
Technology type | a-Si |
Display Spec. | 0.198 x 0.198 |
Display Mode | Normally White |
ST7282 | |
Surface Treatment | HC |
Viewing Direction | 12 O’clock |
Gray Viewing Direction | 6 O’clock |
LCM+CTP (W x H x D) (mm) | 105.4*67.15*5.27 |
Active Area(mm) | 95.04 x 53.86 |
With /Without TSP | With CTP |
Weight (g) | TBD |
LED Numbers | 7 LEDs |
二、產品接口定義
LCD pin
No. | Symbol | Description |
1 | LEDK | Backlight LED Cathode |
2 | LEDA | Backlight LED Anode. |
3 | GND | System Ground |
4 | VDD | Power supply for logic operation |
5~12 | R0~R7 | Data bus |
13~20 | G0~G7 | Data bus |
21~28 | B0~B7 | Data bus |
29 | GND | System Ground |
30 | DCLK | Pixel clock signal |
31 | DISP | Display on/off control |
32 | HSYNC | Horizontal Sync signal |
33 | VSYNC | Vertical Sync signal |
34 | DE | Data Enable |
35 | NC | No connect |
36 | GND | System Ground |
37 | NC/XR | TP pin XR |
38 | NC/YD | TP pin YD |
39 | NC/XL | TP pin XL |
40 | NC/YU | TP pin YU |
CTP PIN
Pin | Signal | Description |
1 | GND | Ground |
2 | VDD | Power supply |
3 | SCL | I2C clock input 2.8V |
4 | NC | / |
5 | SDA | I2C data input and output 2.8V |
6 | NC | / |
7 | RST | Reset Pin for CTP 2.8V |
8 | NC | / |
9 | INT | Interrupt request to the host 2.8V |
10 | GND | Ground |

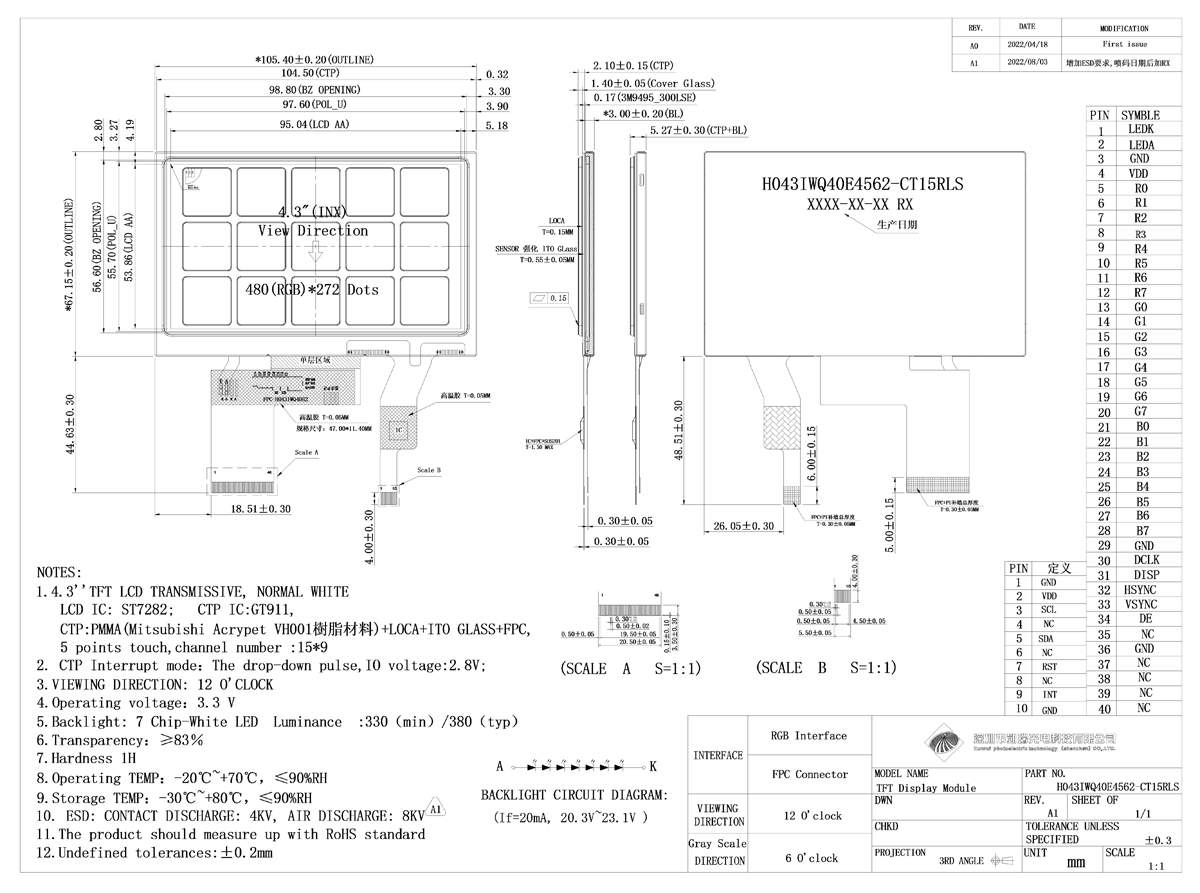

三、產品尺寸圖紙
